2026 PRICING
$16,200 with Honda Engine

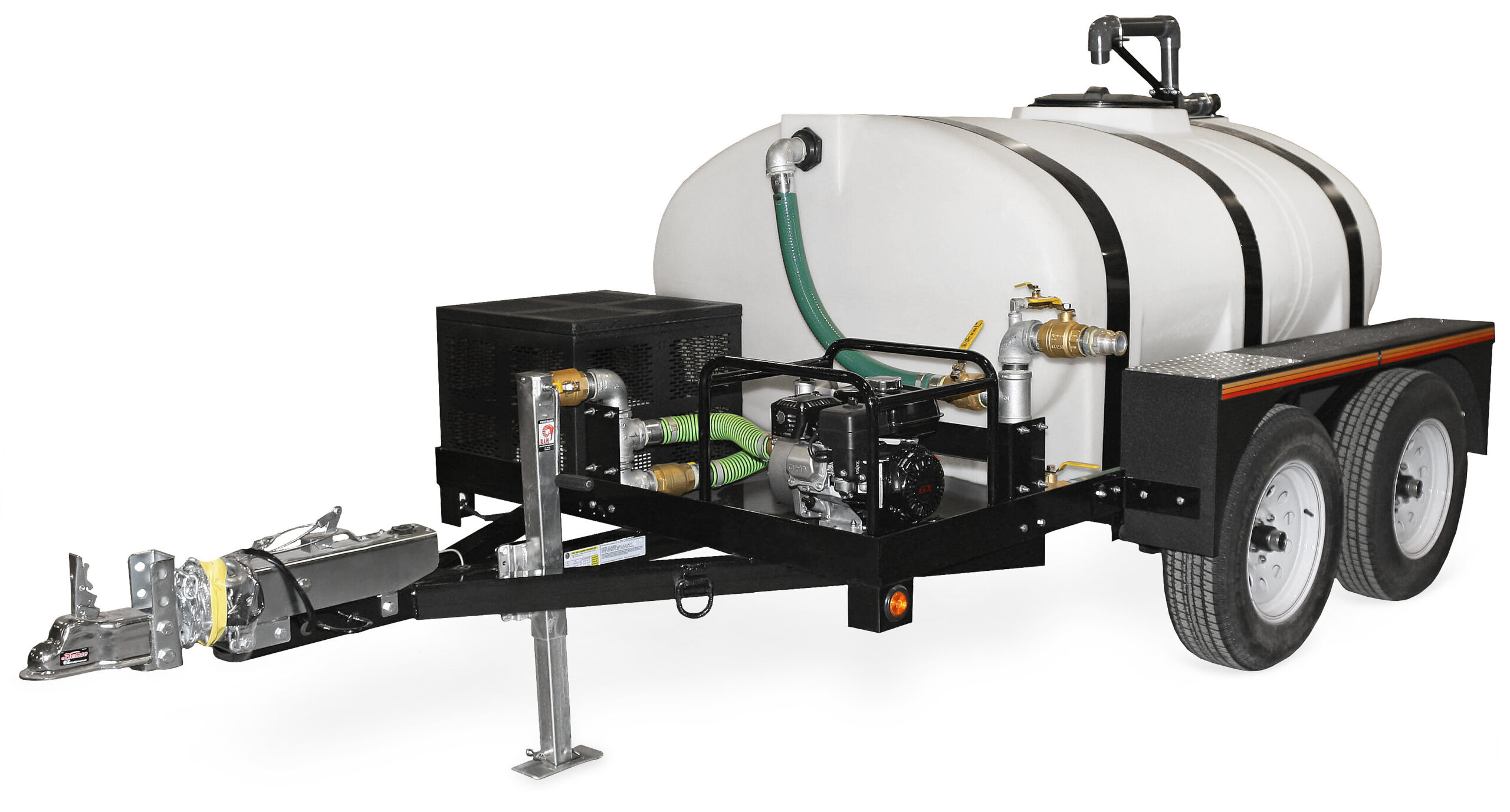

Tame dust, clean parking lots or haul water with this water transport trailer. This unit features a 510-gallon water tank, rear spray, hose hook-ups and more.
Tank
510-gallon elliptical low profile 3/8-inch thick polyethylene · 16-inch manhole with 4-inch vent
Central Manifold
Easy-to-operate butterfly brass valves
Plumbing
1 1/2-inch fire hose hook-up with 50-foot x 1 1/2-inch hose and fog nozzle · Break-away hydrant fill with 25-foot x 2 1/2-inch hose · Dual rear spray heads · Garden hose connector · Manifold discharge system · Water hammer prevention valve
Trailer
DOT approved · 12-inch under-clearance at axle · 7,000-lb. side-mount crank jack · Dual leaf spring suspension · Rubber mounted sealed lights · Wire storage basket · Two safety chains with snap hooks · (4) ST225-75 15-inch tires
Semi-Trash Pump
2-inch suction and discharge that handles solids up to 3/4-inch diameter · Heavy-duty powder coated wraparound frame · Silicone carbide mechanical seals · Precision molded cast iron impeller and volute for reduced vibration and wear
Specifications
Displacement/ Engine
196cc Honda GX200 OHV
Pump
2 in. Semi-Trash
Hitch
2 in. Ball
Axle
(2) 3,500 lb. Tandem with Hydraulic Surge Brakes
Bed Frame
5 ft. x 8 ft.
Trailer Weight (Loaded)
5,900 lb.
Weights & Dimensions
Net Weight
1580.00 lbs.
Shipping Weight
1580.00 lbs.
Length
164.40 in.
Width
81.60 in.
Height
69.60 in.
Options – must be ordered with unit and cannot be added later.
TX-0008 Hard Suction Option
Allows you to draw water from an auxiliary source (pond, water pit, etc.). The fire hose is designed to be used with pressurized water and lays flat for easy storage. Fits all models without TX-0024 water bypass option.
TX-0010 Adjustable Trailer Coupler Hitch
Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket
TX-0019 Lunette Ring Hitch
Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches
TX-0024 Water Bypass
Allows you to bypass water from the outlet back to the tank. This can be used to reduce outlet pressure and flow for desired application. Fits all models without the TX-0008 hard suction option.
Warranty Information
- 1 Year Trailer
- 2 Year Pump
- 3 Year Honda Engine
- 3 Year Water Tank
