NO HASSLE 2026 PRICING
Base Model: $12,400
Overview
Specifications
Options
Installation
Overview

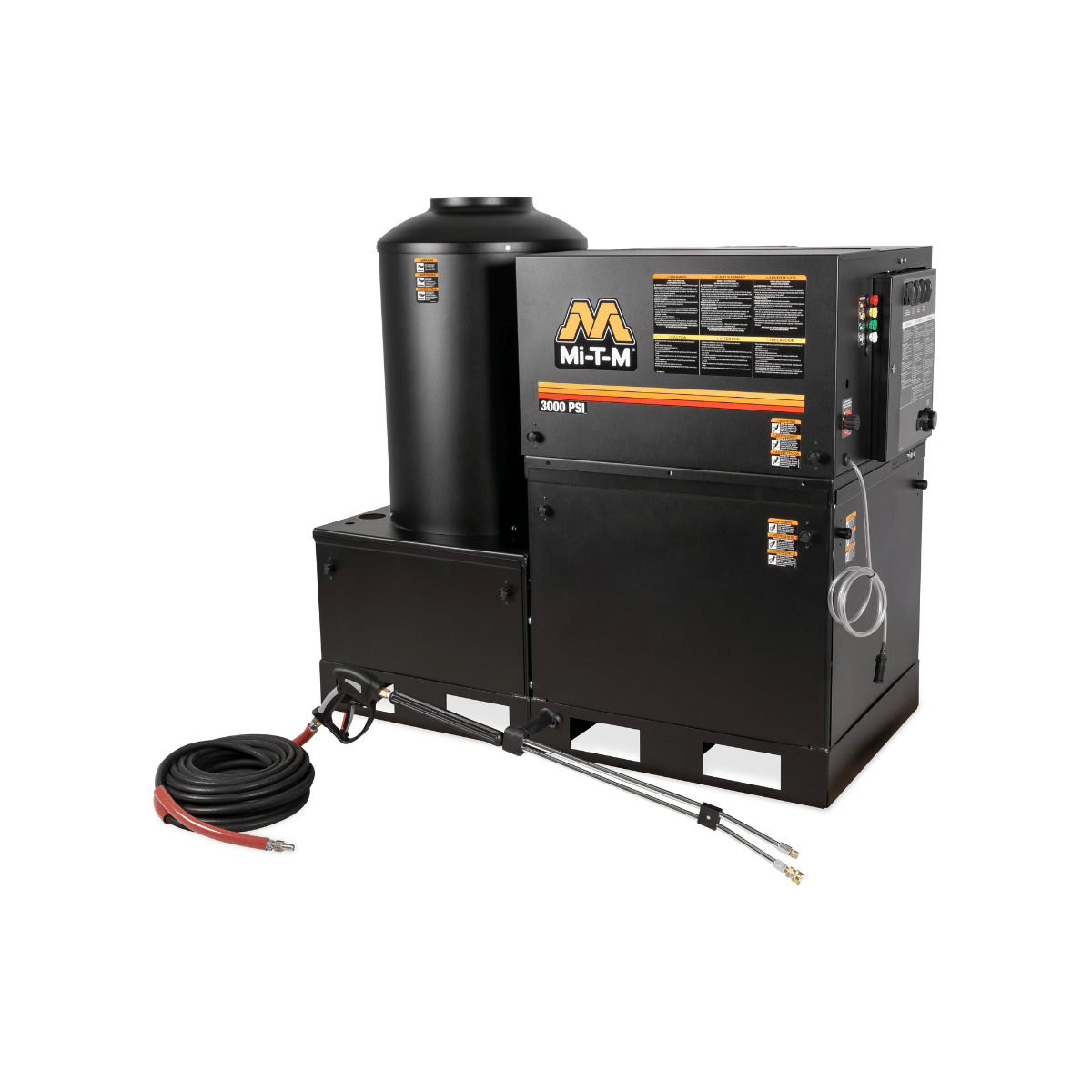

HEG-3004-0E2G
Engineered with superior cleaning power, the HEG Series easily removes tough dirt and grime.
Pump
- Belt drive triplex piston pump with ceramic plungers
- Factory preset unloader
Motor
- Open drip-proof electric motor
Frame
- Powder coated steel frame
Miscellaneous
- Temperature rise 150°F/66°C above ambient,
maximum 200°F (250°F/121°C outlet
temperature with steam option)
Components
- 1/2 inch schedule 80 pipe coil heat exchanger
- Polyethylene float tank with in-line screen filter, 4-gallon
- Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10″ stack
- 10″ draft diverter
- Thermal relief valve
- Electronic ignition with standing pilot light
- Pressure switch and over-pressure safety controls
- 24V control system
- Adjustable high pressure detergent injector
- Adjustable thermostat
Unit Includes
- Quick connect nozzles
- 50 foot x 3/8″ steel wire-braid high pressure hose with quick connects
- Adjustable pressure insulated dual lance with trigger gun
Specifications
Specifications
- 3000 PSI
- 4 GPM
- 8.0 HP, 230V, Single Phase, 37.0 Amp
- 338,000 Natural Gas BTU/ Hour
- 326,000 LP Gas BTU/ Hour
- Dimensions: 56.5″ L x 29″ W x 49.75″ H
- Ship Weight: 878lbs
- Net Weight: 758lbs
Options
Options
- Auto/Start Stop
- Time delay shutdown
- Remote Station
- Dual Gun
- Hour Meter
- Elevated float tank

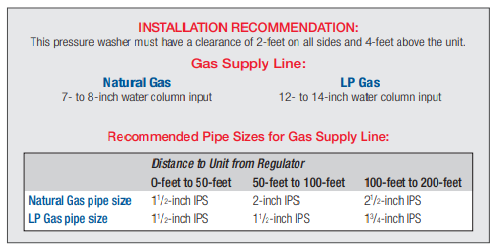

Installation
For full installation notes, refer to installation section of owners manual.
Warranty Information
- 1 Year Electric Motor
- Consult owners manual for more information.
