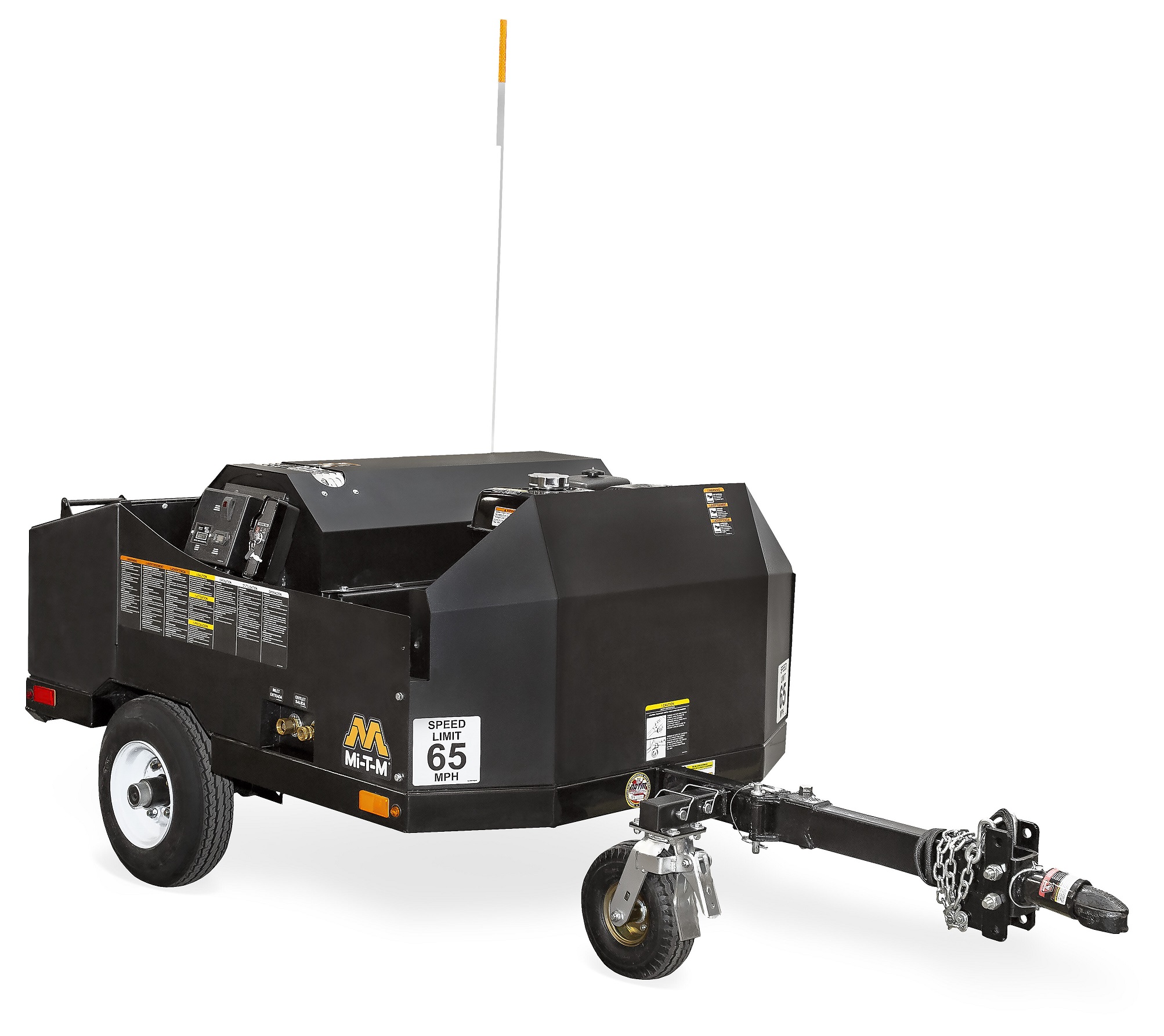

HMT-4004-0MGH
Easy to tow and equipped with a 12V Beckett burner, the hot water mini trailers are durable and perfect for cleaning on the go.
Pump
Adjustable pressure unloader · Forged brass manifold · Thermal relief valve
Engine
Remote engine start and choke · 12V electric start – battery not included
Frame
Reinforced powder coated steel frame · Locking rear storage area – 2.875 cubic feet · 2-inch ball hitch · Caster brake (Use when unhitched) · (2) 4.80-8 8-inch bias ply tires
Components
½-inch schedule 80 pipe-coil with 4-pancake heat exchanger · 12V Beckett burner · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Engine hour meter · 1,000-lb. axle
Miscellaneous
Temperature rise 140°F/60°C above ambient
Safety Features
Removable safety flag for transportation and guidance when backing up · Recommended maximum speed is 65 mph · DOT approved · 250°F high temperature safety limit switch
Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
Specifications
PSI
4000
GPM
3.7
Displacement/ Engine
389cc Honda GX390 OHV
Pump
General
Engine Fuel Tank Capacity
1.61 gallon
Burner Fuel Tank Capacity
10.0 gallon
Burner Fuel Cons.
2.45 gph
BTU Per Hour
343,000
Weights & Dimensions
Net Weight
1000.00 lbs.
Shipping Weight
1000.00 lbs.
Length
99.00 in.
Width
43.50 in.
Height
36.00 in.
Options – must be ordered with unit and cannot be added later.
TX-0010 Adjustable Trailer Coupler Hitch
Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket
TX-0020 High Pressure Hose Real
12-inch hose reel, 1
Warranty Information
- 3 Year Honda Engine
- 7 Year General Pump
